Flow Cytometry and Microbiology


Kuo-Ping Chiu, Diana Davis and Craig Hixson
Bio-Rad Laboratories
Molecular Diagnostics Division, Flow Cytometry Department
4000 Alfred Nobel Drive
Hercules, CA 94547


Recent reports have illustrated that flow cytometry may be utilized to rapidly detect antibiotic susceptibility of bacteria. This technology offers considerable advantages in drug research for the detection of novel antimicrobials and may, with further development, find a use in the clinic for more efficient susceptibility testing as an aid to the selection of therapy. The Bio-Rad Laboratories Flow Cytometric Antimicrobial Susceptibility Test (FASTTM-2 kit) does not rely on growth inhibition, but on the rapid detection of antimicrobial effect on bacteria measured by a pair of fluorescent probes. Two models for antibiotic activity, Escherichia coli and ampicillin, and Enterococcus faecium and vancomycin were studied as a function of dosage and exposure time respectively. Transitions in light scatter patterns of the bacteria were observed following treatment with antibiotic at various drug concentrations and exposure times. As the antibiotic concentration and exposure times were increased, a reduction in the number and viability of the bacteria, as measured by the Bio-Rad BRYTE HSTM; flow cytometer and the FAST-2 kit, was observed. These experiments defined the effectiveness of ampicillin against E. coli as a function of its concentration and E. faecium and vancomycin as a function of exposure time. The results indicate that the FAST-2 system is a rapid, reproducible and sensitive technique to study the mechanisms of antibiotic action in bacteria.


Reagents and solutions. Ampicillin and vancomycin were obtained from Sigma Chemical Company (St. Louis, MO) and were suspended in sterile double distilled water. The fluorescent stains (Reagent A and Reagent B) were those found in the commercially available product, Flow Antimicrobial Susceptibility Test Kit # 2 (FASTTM -2 Kit), from Bio-Rad Laboratories (Hercules, CA). LB Luria-Bertani (LB) and Brain-Heart Infusion (BHI) liquid media were obtained from Difco Laboratories (Detroit, MI).

Bacterial cultures. Escherichia coli 25922 (E. coli) and Entercoccus faecium 19434 (E. faecium) were obtained from ATCC (Rockville, Maryland). Bacteria were cultured on solid medium plates or in broth. The number of CFU (colony-forming units), an indicator of viable bacterial numbers, was used as an independent estimate of viability for all antibiotic susceptibility experiments. The CFU number was determined on plates using standard techniques.

 Antibiotic Susceptibility Testing. Bacteria were inoculated into liquid medium and cultured until O.D.600 nm was approximately 0.2 (~3 hours). The concentration of ampicillin was varied from 0 to 40 µg/ml and the exposure time was fixed at 30 minutes using the E. coli-ampicillin model. Vancomycin concentration was fixed at 1.5 µg/ml and exposure times were varied from 0 to 3 hours using the E. faecium-vancomycin model. An untreated culture was included with each experiment as a control.

Staining of Bacteria with FAST-2 kit. Following treatment with antibiotic, cultures were analyzed for morphology and viability using the FAST-2 kit according to the protocol. Tubes containing no dye and each dye alone were included to set proper fluorescence compensation. A tube containing NaCl and bacteria was also included to set autofluorescence levels.

Flow cytometry. Flow cytometric analysis was carried out using a Bio-Rad Laboratories BRYTE HSTM flow cytometer equipped with a high-pressure 75 W Xenon arc lamp (Hamamatsu) and a 200 µm nozzle. Excitation light was selected using the dual exciter Bio-Rad FITC-520 optics block (470-490 nm and >520 nm excitation light). Green and red emitted fluorescence were detected using a Bio-Rad GR1 separator filter block (515 - 565 nm and 590 - 720 nm emission light). Both fluorescence emission signals were compensated to adjust for overlapping emission signals from the two fluorophores. The data were subsequently displayed and analyzed using WindowsTM-based WinBryteTM software (Bio-Rad).


In the first model studied, E. coli were exposed to various concentrations of antibiotic for 30 minutes and analyzed using the FAST-2 kit and the BRYTE HS flow cytometer. Bacteria exposed to ampicillin concentrations up to 10 µg/ml exhibited an increase in size and granularity as is shown by a shift up and to the right in the light scatter histogram as compared to the position of the original population (Figures 1B through 1D). This phenomenon reflects the mode of action of ampicillin, which is to inhibit cell wall synthesis and cause filamentation, or enlargement of the bacteria, and has been previously reported (1,2). At 40 µg/ml, the bacteria began to lyse and a substantial amount of subcellular debris was visible below and to the left of the intact bacteria.

Figures 2A-D show ampicillin-treated E. coli stained with the FAST-2 kit. Live, untreated E. coli stain predominantly with Reagent B and are located in quadrant A (94.7%)(Figure 2A). Ampicillin-treated E. coli exhibited four populations: a quadrant A population, positive for Reagent B, negative for Reagent A, assumed to be live cells, a quadrant B population, positive for both Reagent A and Reagent B, assumed to be dying cells, and a quadrant D population, negative for Reagent B, positive for Reagent A, assumed to be dead, intact cells. Finally, quadrant C events, negative for both stains, were cells which did not exhibit fluorescence above background levels. As the ampicillin concentration was increased, the percentage of dead and dying cells and debris also increased. At 1.25 µg/ml of ampicillin, a significant amount of cell death occurred (38.5%). The maximum effect of ampicillin was observed at 40 µg/ml (98.0%), although at 10 µg/ml, 92.6% of the cells were dead.

In the second model studied, E. faecium cultures were exposed to 1.5 µg/ml vancomycin for 40 minutes, 1 hour and three hours. The bacteria were analyzed using the FAST-2 kit and the BRYTE flow cytometer and the results are shown in Figure 3. A significant amount of cell death was observed as the exposure time to vancomycin increased, with maximum cell death occurring at 3 hours.

The absolute number of live (quadrant A) cells and the CFU counts obtained by standard plating methods were compared to assess the ability of the FAST-2 system to differentiate live and dead bacteria in both experiments (data not shown). Results showed that the two methods were in very close agreement, indicating that the FAST-2 System using the Bryte HS flow cytometer is a useful, accurate method for the determination of viable cell counts.

These experiments illustrated that the effects of antibiotic action on bacterial cells can be monitored by flow cytometry using the BRYTE HS flow cytometer and the FAST-2 system. These data were obtained from two model systems of E. coli and ampicillin and E. faecium and vancomycin. These results indicate the power of this method to study drug concentration and kinetic effects. Flow cytometry allows for the rapid measurement of subtle dose-response effects and has the potential to supersede conventional growth-inhibition techniques in terms of speed, convenience, reproducibility, and analytical performance.

Gant, V.A., Warnes, G., Phillips, I. and Savidge, G.F. 1993. The application of flow cytometry to the study of bacterial response to antibiotics. J. Med. Microbiol. 39, 147-154.
Walberg, M., Gaustad, P., and Steen, H.B. 1996. Rapid flow cytometric assessment of mecillinam and ampicillin bacterial susceptibility. J. Antimicrobial Chemotherapy. 37, 1063-1075.

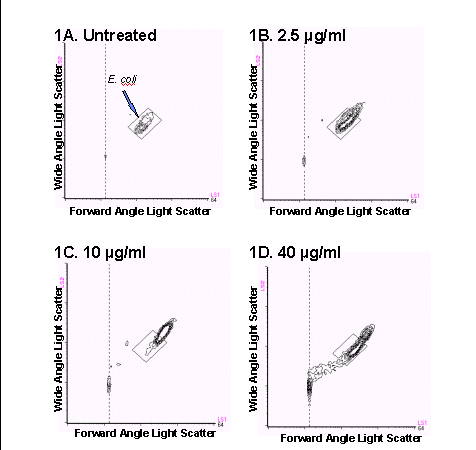

Figure 1.  Bivariate light scatter cytograms obtained after treatment of E.coli with (A) 0 mg/mL,
(B) 2.5 mg/mL, (C) 10 mg/mL, and (D) 40 mg/mL ampicillin.  A reference box was drawn
around the cells to illustrate the changes in bacterial size and granularity following treatment with ampicillin.

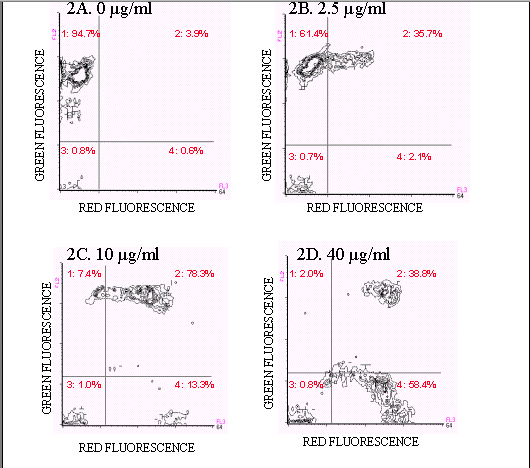

Figure 2.  Two color fluorescence histograms of E.coli treated with ampicillin and stained with
the FAST-2 kit.  E.coli treated with ampicillin showed an increase in the number of dead and
dying cells (quadrants 2, 3, and 4) and a decrease in the number of live (quadrant1) cells (Figures 2B-2D).

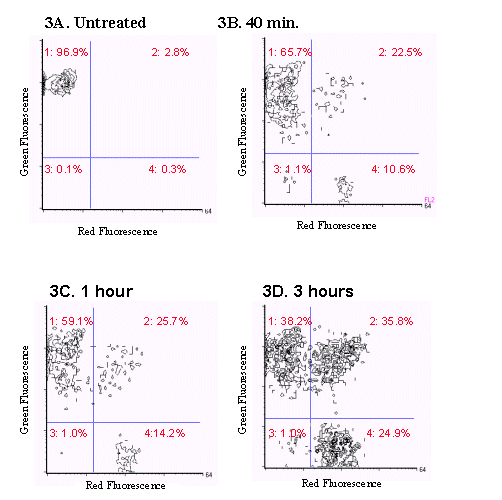

Figure 3.  Two color fluorescence histograms of E.faecium treated with vancomycin and stained
with the FAST-2 kit.  As the exposure time of E.faecium to vancomycin increased, an increase
in the number of dead and dying cells (events present in quadrants 2,3, and 4) was also observed.
